Greenbull trackdolly shooting systems XT5 smart (6 curved path &6 straight path&one lifting ) for studio , stage ,wedding and musica event silde rail shooting system
$7,999.00
跳至产品信息
Greenbull trackdolly shooting systems XT5 smart (6 curved path &6 straight path&one lifting ) for studio , stage ,wedding and musica event silde rail shooting system
$7,999.00
Details

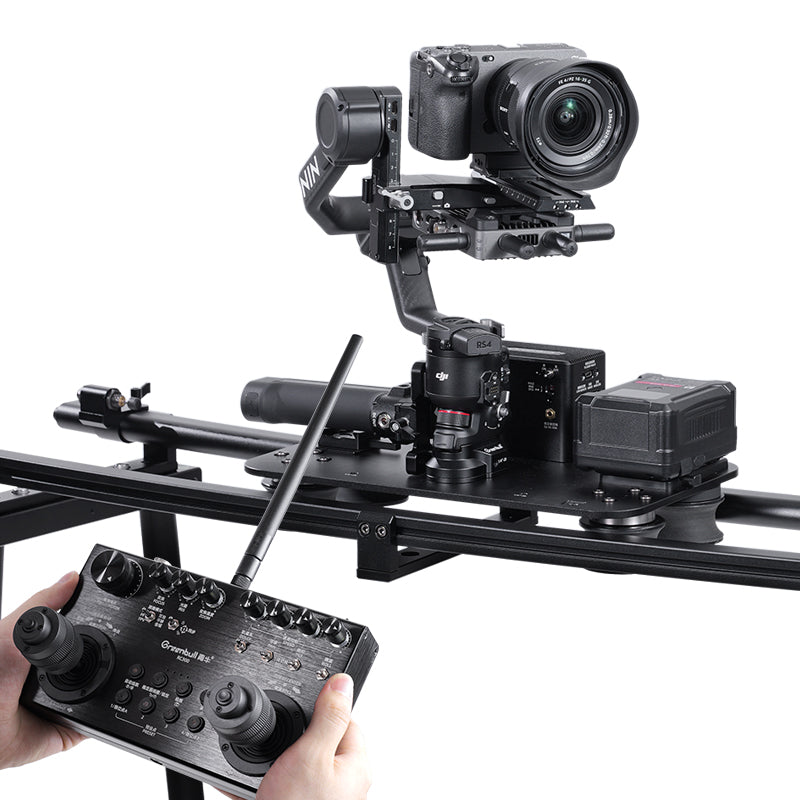

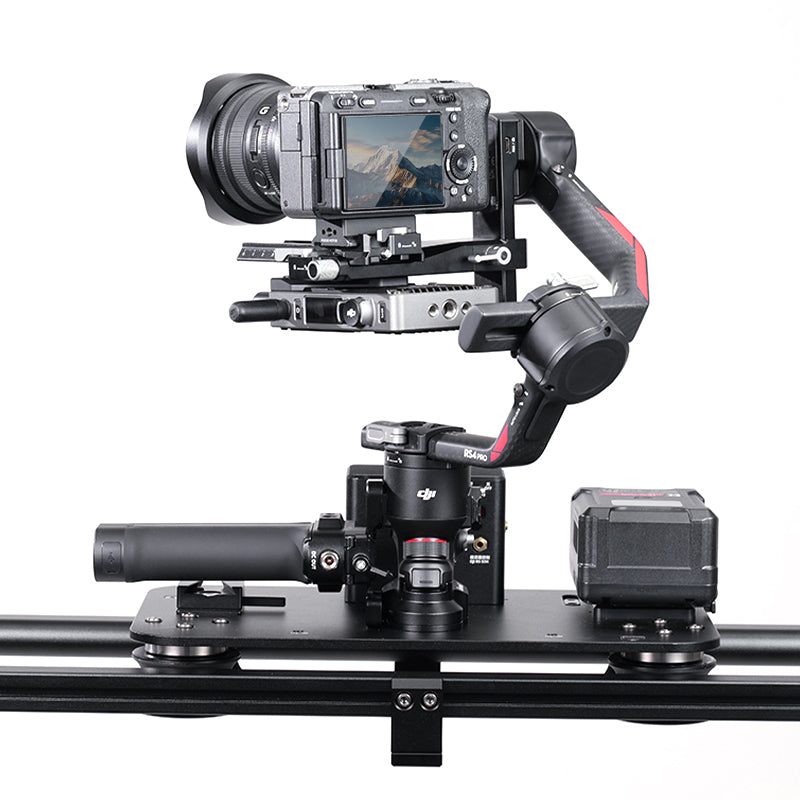

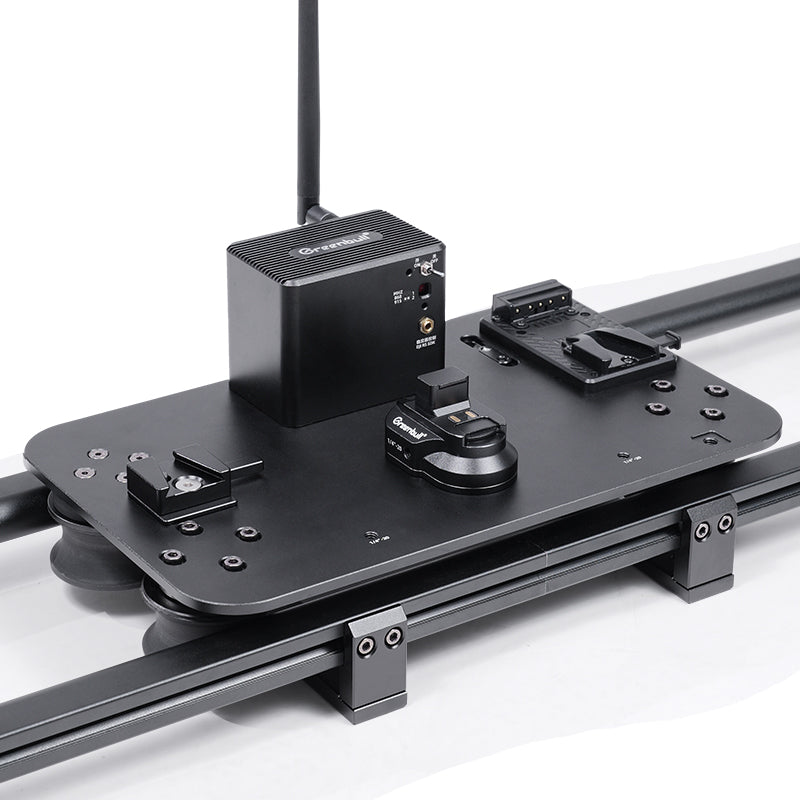

Portable Rail Shooting Robot
Applicable to onsite activities, performance and live streaming
XT5 Smart PRO+ is a kind of portable rail shooting system. It supports shooting via remote control railcar, DJI stabilizer and video camera/camera. Easy to learn and operate, and portable, it can be easily deployed on activity site. It is extensively applicable to the scenarios such as live streaming activities, art performance, sports events, concerts, music festivals, wedding ceremonies and parties, shows, etc.
Version Features and Parameters
|
Model |
XT5 Smart |
|
Version |
PRO+ |
|
Overall dimensions |
350x210x132mm (LxWxH) |
|
Material |
Aluminum alloy |
|
Dead weight |
3.6kg |
|
Payload |
≤6kg |
|
Speed range |
≤2 m/s |
|
Working voltage |
DC 14.8 V |
|
Power interface |
V-port battery connector plate |
|
Battery life |
≥8h (Purchased separately, if 14.8V-290Wh-V-port camera lithium battery is used) |
|
Remote control |
RC303: Multifunctional remote control with 3D rocker |
|
Control mode |
Wireless/wired |
|
Wireless remote control |
915Mhz: 4 frequency points (open environment ≥100m) |
|
Wired control |
RS485 (RJ-45) The control cable is CAT-5e or higher (purchased separately), with a maximum control distance of 1,000m |
|
Railcar remote control |
Stepless speed regulating: 1. Rocker; 2. Foot controller; 3. Automatic cruising |
|
Power supply base of stabilizer |
Yes |
|
Matching stabilizer |
RS4PRO, RS4, RS3 PRO, RS2 |
|
Stabilizer remote control |
3-axis control/speed/direction/recentering/following mode/multi-axis synchronization |
|

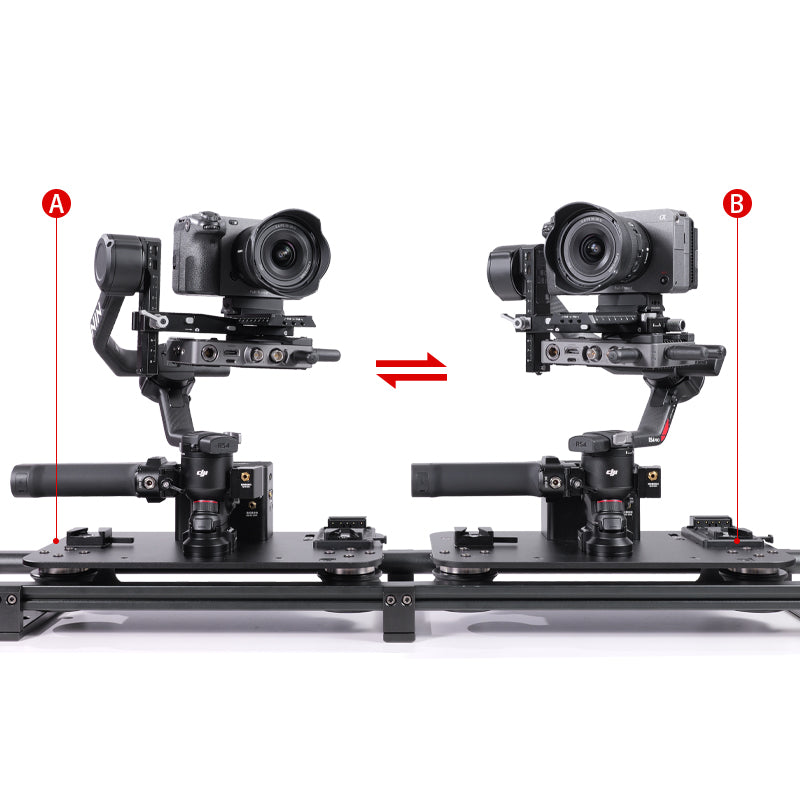

Qty. of pre-stored key positions |
4 (A and B limit points + 2 pre-set positions) |
|
DJI intelligent tracking |
No/off/composition |
|
DJI RS Focus motor control |
Zoom mode * Electric zoom effect can be realized by manual camera |
|
Camera controller |
G2 camera controller * Integrated with Sony mirrorless camera control protocol, able to control such functions as aperture, focus, zoom, recording, etc. such as FX3 and FX30 * Integrated with DJI stabilizer control protocol, compatible with such models as R2, RS4PRO, RS4, RS3 PRO and RS2 |
|
Camera remote control |
Recording, zoom/zoom speed, focus, aperture, etc. * Such as FX6, Z200, Z90, etc. |
|
Camera remote control |
Aperture, shutter, ISO, recording, focus, etc. * Applicable to all compatible cameras RS4PRO, RS4, RS3 PRO, and RS2. For details about model, please consult DJI official website |
|
Camera zoom control |
FX3/FX30: Zoom and zoom speed control * The zoom function works only when the camera above is used together with electric zoom lens, such as: 1. FE 4/PZ 28-135 full frame electric zoom lens 2. FE 4/PZ 16-35 full frame wide-angle electric zoom lens 3. E 4/PZ 18-105 electric zoom lens 4. E 4/PZ 10-20 ultra-wide-angle electric zoom lens |
|
Foot controller |
Standard configuration |
|
Gain antenna |
Standard configuration |
|
Optical fiber control set |
Optional (with V-clip; it can be powered by a V-port battery and can optionally integrate 4K HDMI version) |
|
Flexible column |
Optional (adjustable within the height of 0.3-0.6m) |
|
Telescopic leg |
Optional (adjustable within the height of 0.66-1.2m) |
Telescopic leg
Adjustable within the height of 0.66-1.2m

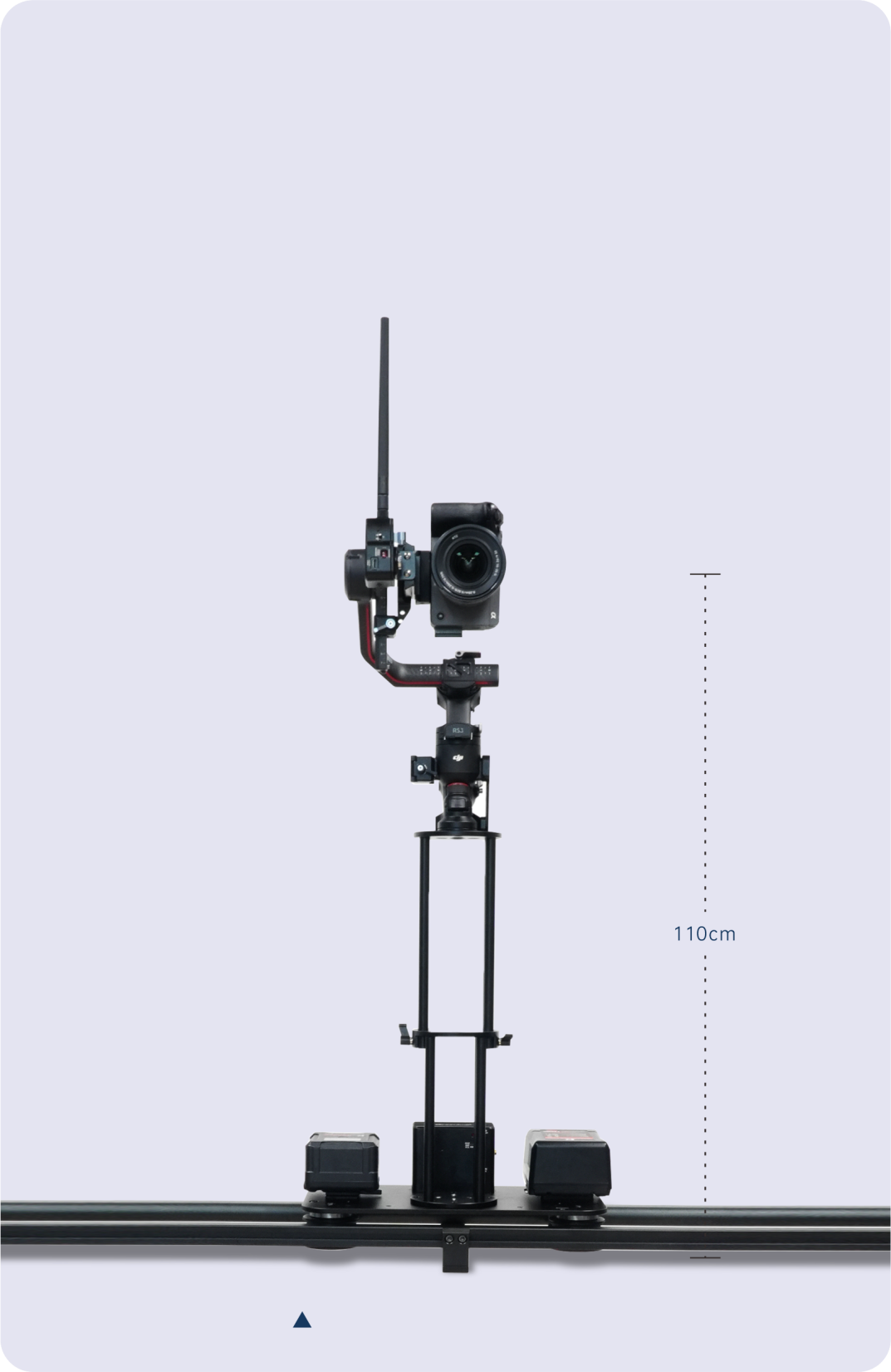

Flexible Column
Telescopic scope: 0.3-0.6m

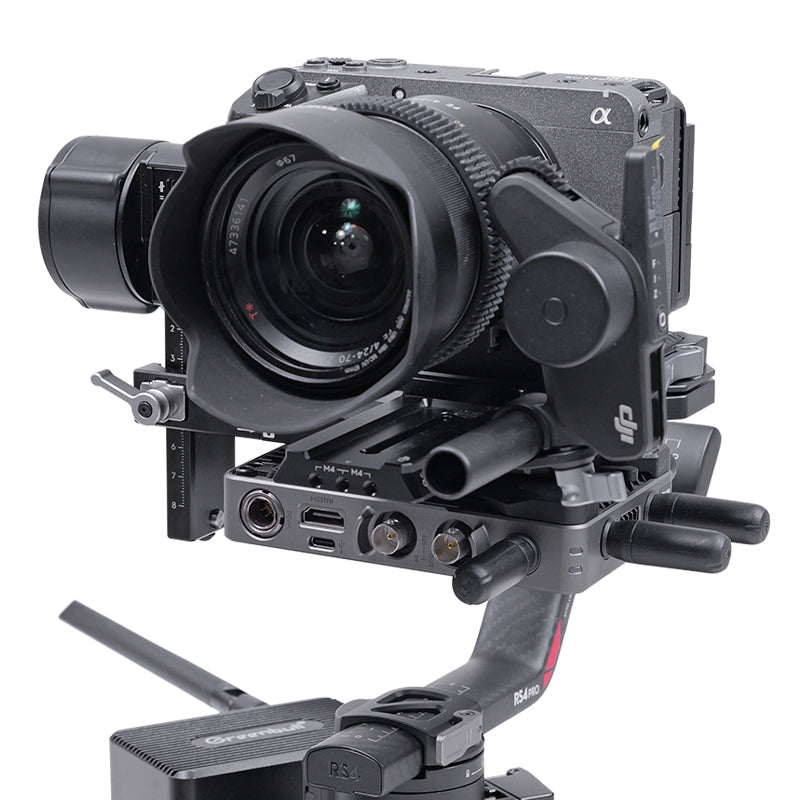

Camera Controller
Integrated with Sony mirrorless camera and DJI stabilizer control protocol, small, light and applicable to installation at
camera or stabilizer; shooting by operating camera/video camera and stabilizer remotely
* Integrated with Sony mirrorless camera control protocol, able to control such functions as aperture, focus, zoom, recording, etc. such as FX3 and FX30
- Integrated with DJI stabilizer control protocol, compatible with such models as R2, RS4PRO, RS4, RS3 PRO and RS2
Stabilizer Remote Control
The railcar is integrated with DJI RS SDK protocol to control stabilizer rotation, tilting, rolling and recentering
Compatible with DJI RS4 PRO, RS4, RS3 PRO and RS2
Camera Zoom/Zoom Speed Control
Applicable to such models as Sony FX3/FX30
* The zoom function works only when the camera above is used together with Sony electric zoom lens.
1. FE 4/PZ 28-135 full frame electric zoom lens
2. FE 4/PZ 16-35 full frame wide-angle electric zoom lens
3. E 4/PZ 18-105 electric zoom lens
4. E 4/PZ 10-20 ultra-wide-angle electric zoom lens
Camera Remote Control
Zoom/zoom speed, focus, aperture, recording, etc.
such as Sony FX6, Z200, Z90, etc.

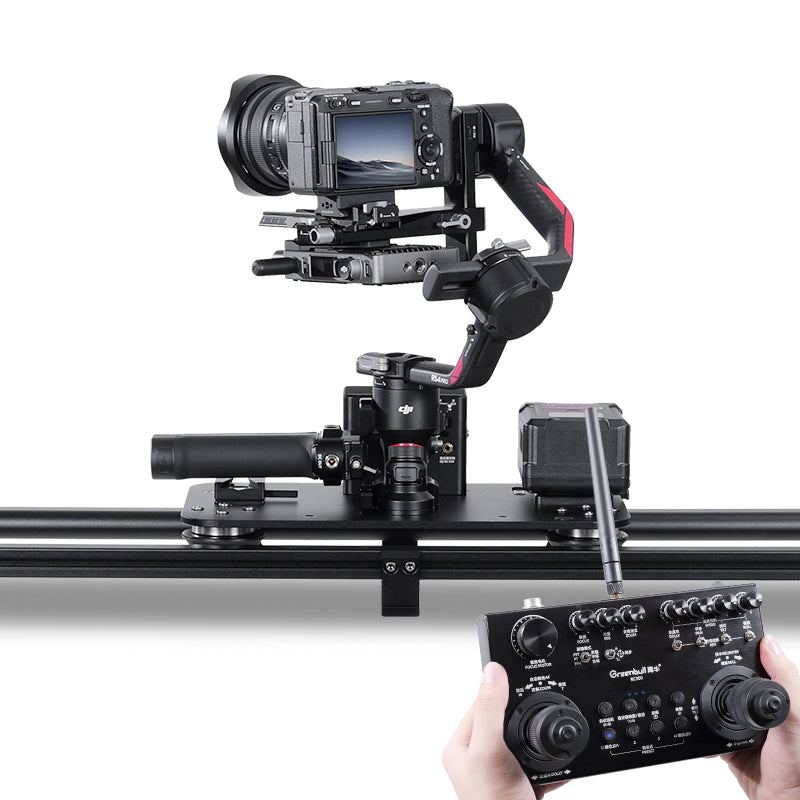

Wireless Remote Control
Control distance in an open environment: Longer than 100m
The fiberglass gain antenna (standard configuration) can further extend the signal of transmitting antenna by 3m
Wired Control
RS485 transmission protocol (RJ-45), with a maximum distance of 1,000m
Optical transceiver kit is optional, which can control the interference-free transmission of signals and images via a long distance through optical fibers (above 10km)
* Wired interface of remote control * Wired interface of railcar
* Picture used for optical transceiver

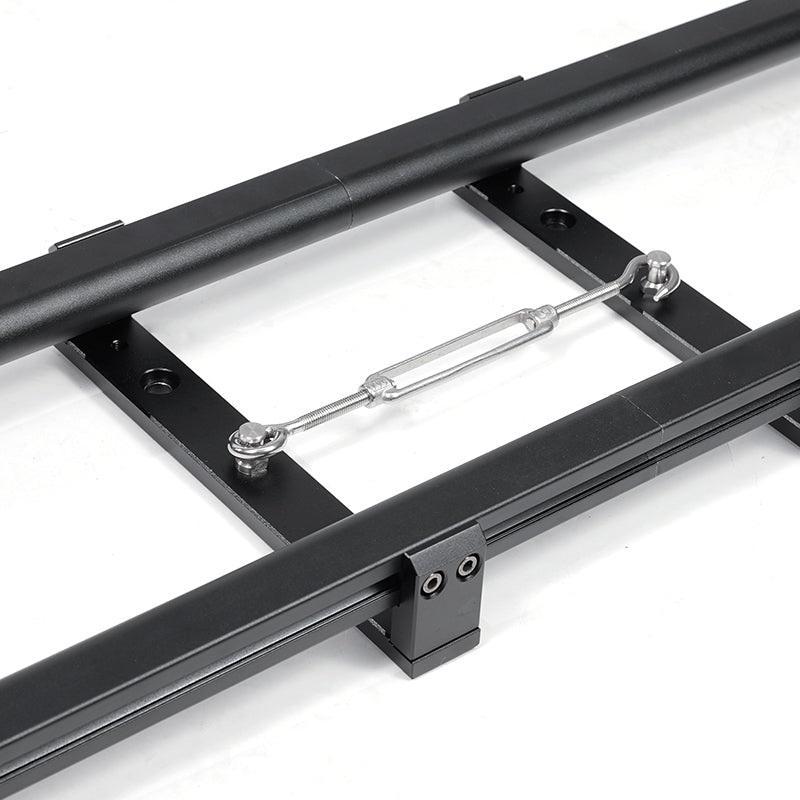

Orbit Parameters
|
Name |
Parameters |
|
|
Material |
Aluminum alloy, black anodized |
|
|
Track gauge |
172mm |
|
|
Straight rail |
Dimensions |
1,000x227x50mm (LxWxH) 1,000x580x870mm (with telescopic leg) 1,000x400x720mm (with the shortest telescopic leg) |
|
|
Weight |
1.9kg; 6.6kg (with leg) |
|
Bending rail |
Dimensions |
1,050x227x50mm (LxWxH) 1,050x510x1280mm (with the highest telescopic leg) 1,050x400x720mm (with the shortest telescopic leg) |
|
|
Radius |
3m, 20 radians/section, 18 sections of bending rails can be assembled into a circle |
|
|
Weight |
1.9kg; 6.6kg (with high telescopic leg |
