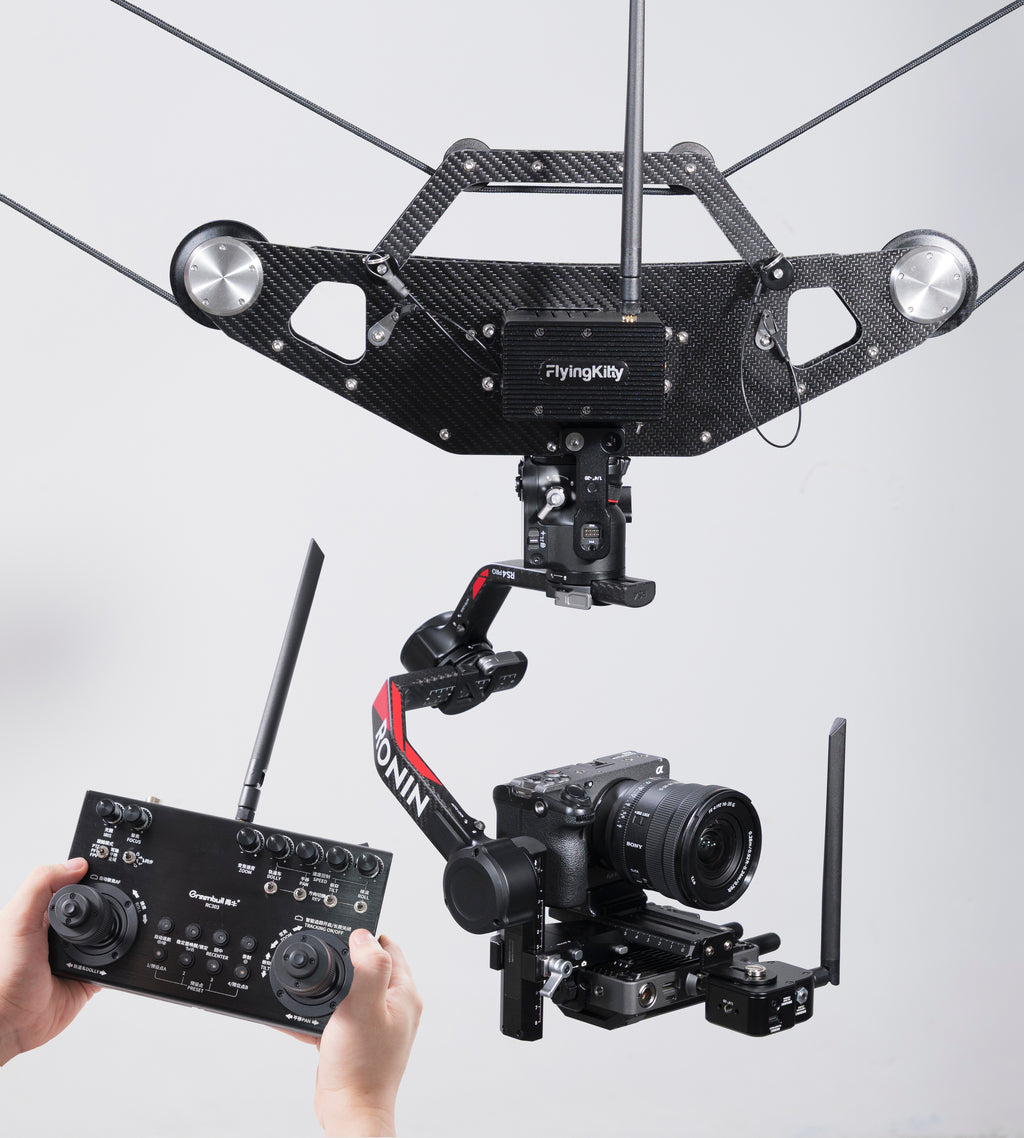

FM6 MAX Cableway Camera System

All in a Panoramic View
The FM6 MAX Cableway Camera System uses a remote-controlled cableway vehicle, DJI stabilizer, and video camera for shooting. It can be easily deployed at the event site and is easy to use, easy to operate, and very portable.

Application Scenario
It is widely used in aerial perspective presentations of live events, performing arts programs, sports competitions, concerts, music festivals, wedding banquets, and fashion shows.

Functions and Parameters

Product Features

1. Cable Car: Carbon fiber, 6kg payload, stepless speed regulation

2. Dual Cable Car Design: Safety first

3. Multi-function Remote Control: Combines control of the cable car, gimbal, camera, and focus motor

4. Camera Controller: Compatible with Sony mirrorless cameras and DJI gimbal control protocols. Compact and lightweight, it can be mounted on a camera or gimbal to remotely operate the camera and gimbal for shooting.

*Integrated with Sony mirrorless camera control protocols, allowing control of aperture, focus, zoom, and recording functions, such as the FX3 and FX30 models

*Integrated with DJI gimbal control protocols, compatible with the R2, RS4PRO, RS4, RS3 PRO, and RS2 models

5. Gimbal Remote Control: The cable car integrates the DJI RS SDK protocol, allowing control of gimbal rotation, pitch, roll, and pan

*Compatible with the DJI RS4PRO/RS4/RS3 PRO/RS2

6. Intelligent Tracking Control: Remotely activates and deactivates the DJI Intelligent Tracking module and allows for composition adjustments in Intelligent Tracking mode.

7. DJI RS Focus Motor Control: Zoom Mode

* Power zoom with manual lenses

8. Camera Remote Control: Aperture, Shutter, ISO, Record, Focus, etc.

*Compatible with all compatible RS4PRO, RS4, RS3 PRO, and RS2 cameras. Please refer to the DJI official website for specific models.

9. Camera Zoom/Zoom Speed Control: Compatible with models such as the Sony FX3/FX30

*The zoom function on these cameras will only function properly when used with Sony power zoom lenses. For example:

1. FE 4/PZ 28-135mm Full-Frame Power Zoom Lens

2. FE 4/PZ 16-35mm Full-Frame Wide-Angle Power Zoom Lens

3. E 4/PZ 18-105mm Power Zoom Lens

4. E 4/PZ 10-20mm Ultra-Wide-Angle Power Zoom Lens

10. Camera Remote Control: Zoom/zoom speed, focus, aperture, recording, and other functions, such as those for Sony FX6, Z200, and Z90.

11. AB Limit Points: Conveniently set the safe operating range of the cable car on the remote control.

12. Pre-stored Key Positions: Move the cable car to your desired location at any time.

13. Multi-Axis Synchronized Cruise Control: The cable car and gimbal can achieve multi-axis synchronization for automatic cruise shooting.

14. Wireless Remote Control: The standard fiberglass boost antenna can be extended by 3 meters, enabling control distances exceeding 100 meters in open air environments.

15. Foot Control: The cable car can be controlled by foot.

16. Long-lasting Battery Life: The stabilizer and cable car are powered by independent V-mount batteries for easy use and replacement.

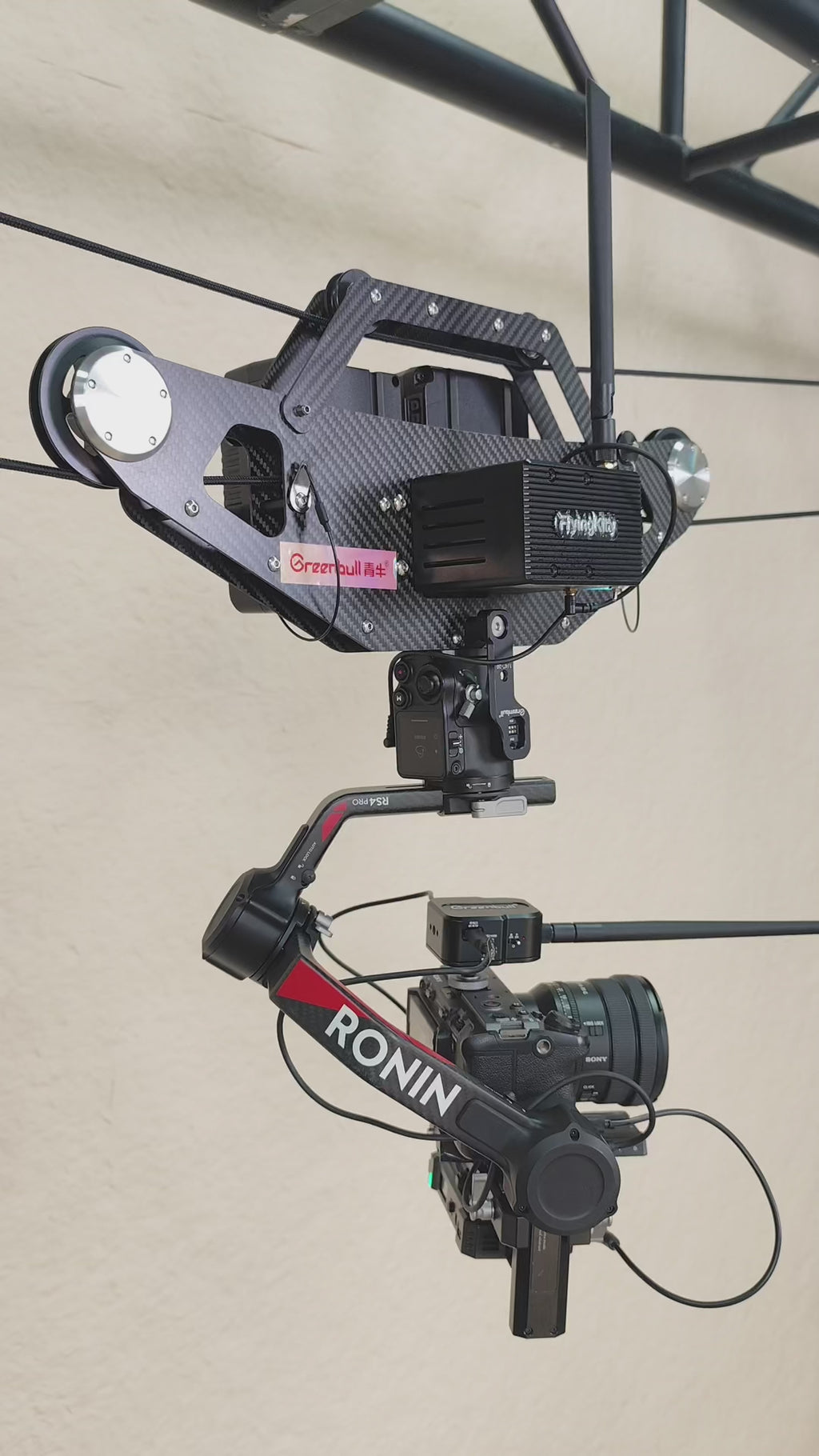

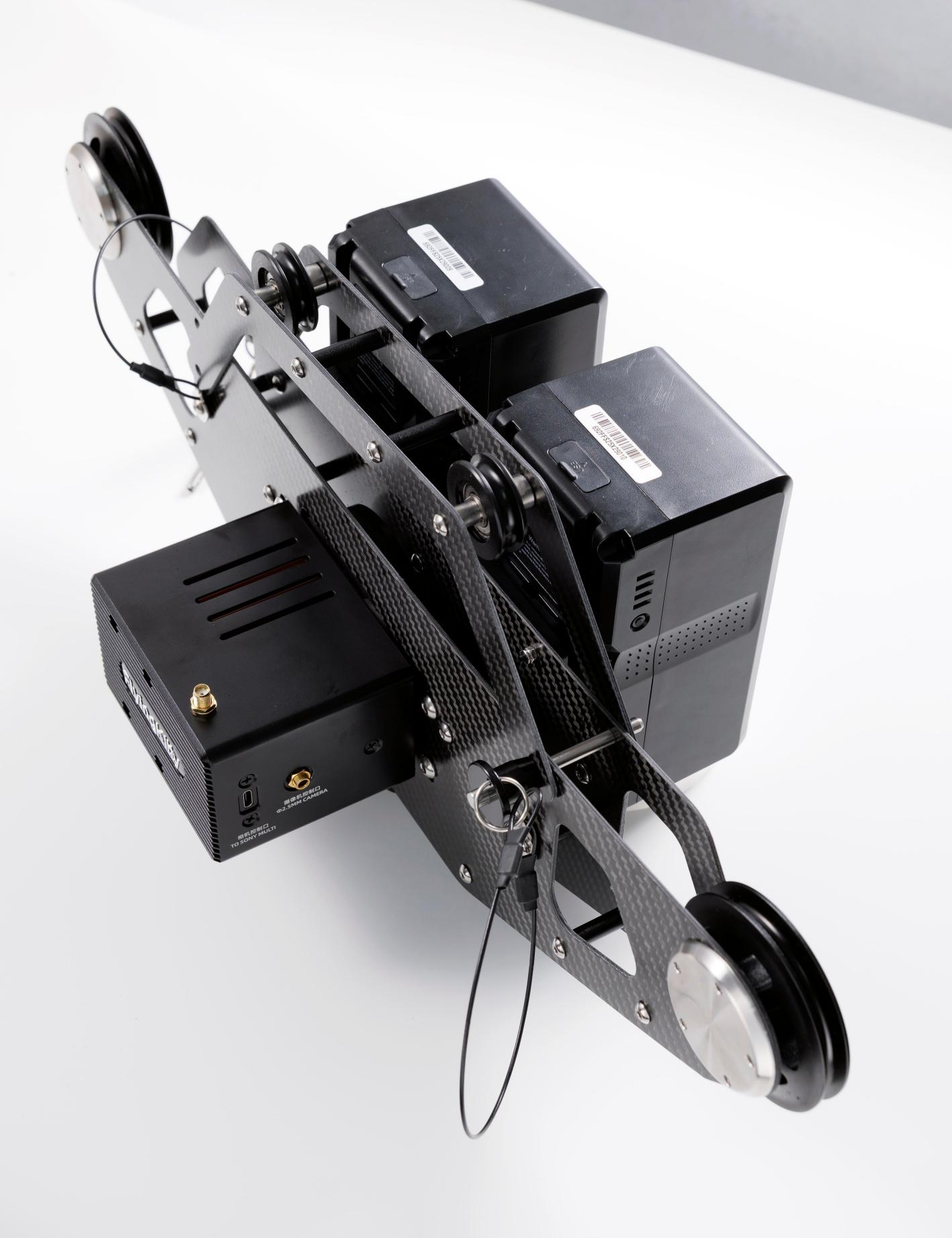

  Carbon fiber cable car

Made of carbon fiber, with 4 wheels, it is powered by a high-torque servo motor, offers precise positioning, is silent and smooth, and has stepless speed regulation. It has certain climbing and hovering capabilities, and its payload reaches 6 kg.

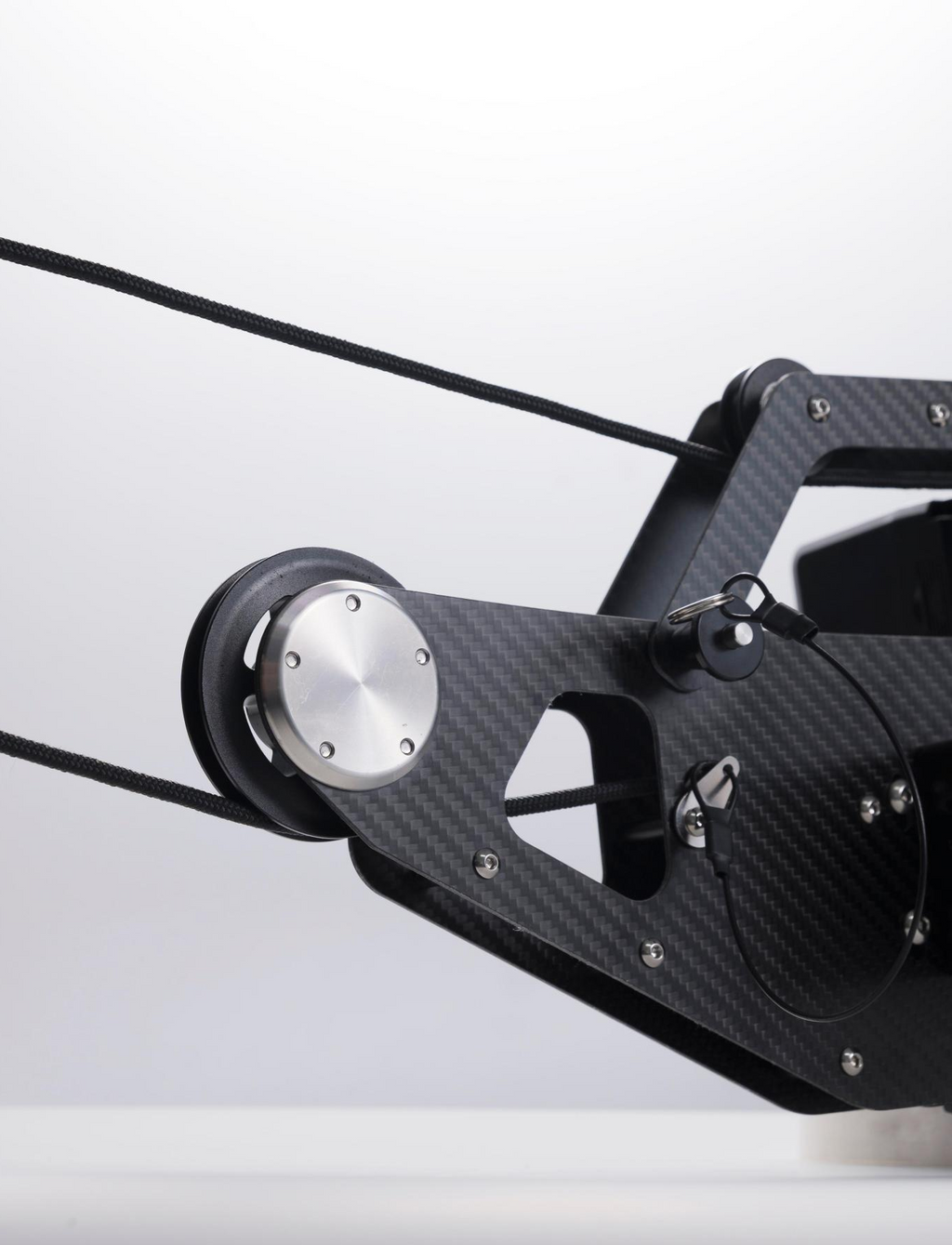

Double ropeway design
